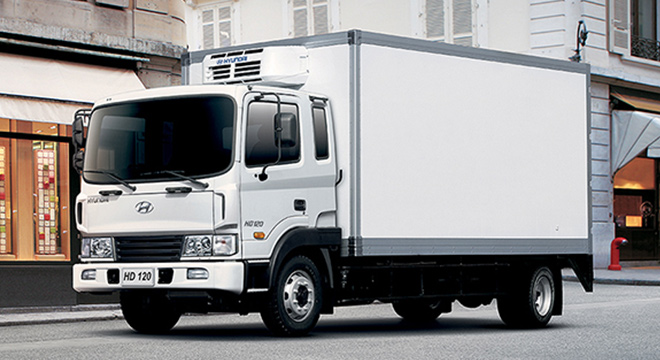

Hyundai HD 120 Cargo Refrigerated Van 6 Wheeler

Hyundai HD 120 Cargo Refrigerated Van 6 Wheeler Specifications

Summary

Truck & Bus Segment	Light-duty Truck
Cab Type	Sleeper Cab
Body Type	Cargo Truck
Body Application
Price	PRICE ON REQUEST
Seating Capacity	3

Engine & Transmission

Engine Model	D6BR
Engine Size (L)	7.5L
Engine Type	6-Cylinder turbo charged, 4 stroke in-line, water cooled
Cylinder Count	6
Valve Count	24
Transmission Type	Manual
No. of Gears	6 Speed
Drive Type	4x2

Performance

Max Power (hp)	165hp
Max Torque (Nm)	588Nm
Top Speed (km/h)	117

Fuel & Economy

Fuel Type	Diesel
Fuel Capacity (L)	200L
Emission Standard	Euro 4

Dimensions

Gross Weight (Kg)	12,520kg
Overall Width (mm)	2,255mm
Overall Height (mm)	2,585mm
Overall Length (mm)	6,865mm, 7,480mm, 8,415mm, 9,510mm
Wheelbase (mm)	3,845mm, 4,260mm, 4,895mm, 5,695mm
Wheelbase Extension	NA
No. of Wheels	6
Front tire size	8.25R16-16PR
Rear tire size	8.25R16-16PR

Suspension & Brakes

Front Suspension	Taper spring double shock absorbers
Rear Suspension	Multi leaf with double shock absorbers
Front Brakes	Air Brakes
Rear Brakes	Air Brakes
ABS	YES
Parking Brakes	YES

Features

Air Conditioning	Yes
Adjustable Drivers Seat	Yes
Cruise Control
Telematics	No
Warranty (Km)	N/A
